Reactivating AutoTrac on Next Pass

PC8866-UN-02NOV05

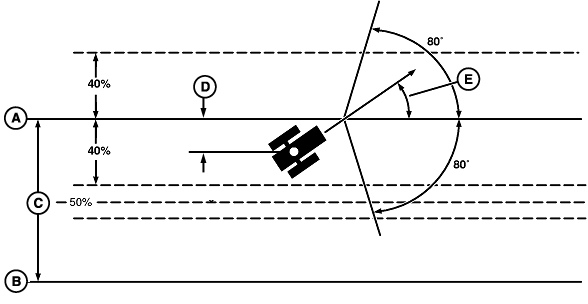

Tracking

A - Track 0

B - Track 1 South

C - Track Spacing

D - Off-Track Lateral Error

E - Track Heading Error

Once the end of the row is reached, the operator must turn system to next pass. By turning steering wheel, AutoTrac is deactivated.

AutoTrac can be activated again by pressing Resume Switch only after following conditions are met:

• Forward vehicle speed is less than 30 km/h (18.6 mph)
• Reverse speed is less than 10 km/h (6 mph).
• In reverse AutoTrac will remain activated for 45 seconds. After 45 seconds the machine must be put in a forward gear before reverse will activate again.
• Vehicle heading is within 80° of desired track.
• The machine is within 40% of track spacing
• Operator is seated.
• TCM is on.

The Track Number that is displayed at the top of the RUN PAGE changes at half the distance between two guidance tracks.
