Theory of Operation

PC9508-UN-24OCT06

Straight Track mode assists operator in driving straight parallel paths. First setup a Track 0 (reference path) using one of several options. Once the Track 0 has been defined, all passes for the field are generated. The generated passes can be used to operate Manual Guidance or AutoTrac. Each pass is generated from the original driven pass to ensure that steering errors are not propagated through the entire field.

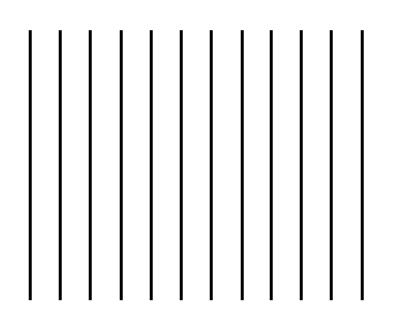

Passes are identical copies of the original pass.

The terms “Guidance Track” and “AB line” are interchangeable. Track 0 is the track defined by the operator and the reference point from which all parallel passes in field are based.

The spacing between the parallel passes is the Track Spacing entered in the Setup Wizard.
