Recording a Straight Path or Navigating Around Obstacles

PC9284-UN-29JUL06

PC9285-UN-08AUG06

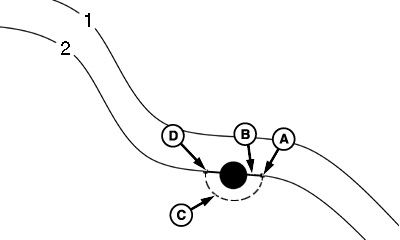

A - Recording PAUSED

B - Bridge segment is generated to connect two points

C - Tractor path not recorded while paused

D - Recording UNPAUSED

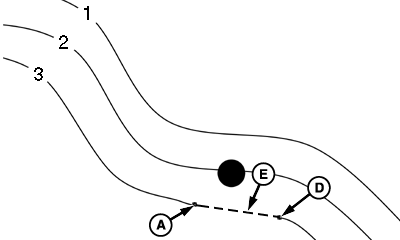

E - Path recorded as a straight line between points A and D

1. Start Recording

2. Select Pause Recording to temporary stop recording of a vehicle’s path.

3. Select Recording to resume recording the Adaptive curve.

The distance between where recording was PAUSED and RESUMED will be connected with a straight line. This can be helpful when there is a long straight section of path or when navigating around obstacles.

The longest bridge segment (line segment created between PAUSED and UNPAUSED) that can be created is a distance of 0.8 km (0.5 miles) (2,640ft). For a greater distance, the line segment will not connect resulting in a gap in the path.
