Auxiliary Controls Page

PC8663-UN-29APR15

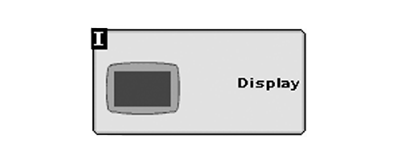

MENU button

ZX1042167-UN-14OCT08

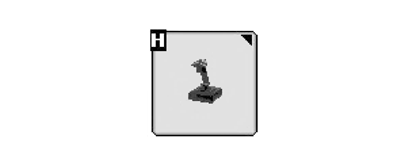

DISPLAY button

ZX1042166-UN-14OCT08

AUXILIARY CONTROLS button

The following screens allow mapping of ISO compliant auxiliary/implement functions to ISO compliant auxiliary controls.

Example:

The display has been set up in a tractor that is attached to a sprayer.

A switch box has been installed in the tractor containing two switches: Switch 1 and Switch 2.

The sprayer has two functions that can be controlled by the switch box: turning the pump on and off, and turning the nozzles on and off.

The operator can choose which switch will turn the pump on and off and which switch will turn the nozzles on and off.

The tractor could be attached to a different implement and the switches could be assigned to control functions of that implement.

Also, a different input device, such as a joystick, could be installed and that device could be assigned control over the sprayer's functions.
