Auxiliary Controls—Assignment Error Messages
While assigning functions, some assignment error messages may appear.
PC10857TG-UN-02MAR10
A - Assignment Error
B - Assignment
E - Auxiliary Controls Page Access Key
F - Enter Key
When an auxiliary function is not responding to an assignment request, the error message (A) appears:Auxiliary function is not responding. Check assignment on Auxiliary Controls page.
The related assignment (B) is displayed. Press key E to reach the Auxiliary Controls page or enter key F to return to the previous screen.
It is recommended to press key E to reach the Auxiliary Controls page and check the auxiliary function assignment.

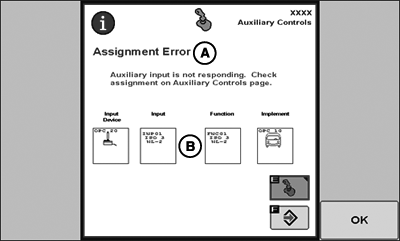

PC10857TH-UN-02MAR10
A - Assignment Error
B - Assignment
E - Auxiliary Controls Page Access Key
F - Enter Key
When an auxiliary input is not responding to an assignment request, the error message (A) appears:Auxiliary input is not responding. Check assignment on Auxiliary Controls page.
The related assignment (B) is displayed. Press key E to reach the Auxiliary Controls page or enter key F to return to the previous screen.
It is recommended to press key E to reach the Auxiliary Controls page and check the auxiliary input assignment.
PC10857TI-UN-02MAR10
A - Assignment Error
B - Assignment
E - Auxiliary Controls Page Access Key
F - Enter Key
When an implement rejects an assignment, the error message (A) appears:Assignment not accepted by auxiliary function. Check assignment on mapping screen.
The related assignment (B) is displayed. Press key E to reach the Auxiliary Controls page or enter key F to return to the previous screen.
It is recommended to press key E to reach the Auxiliary Controls page and check the auxiliary input assignment.

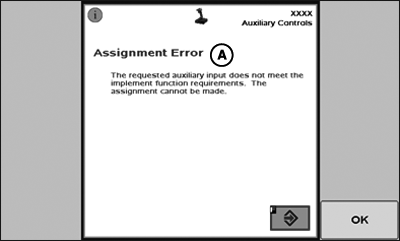

PC10857TJ-UN-02MAR10
A - Assignment Error
F - Enter Key
When the selected auxiliary input does not match the implement functions while the learn mode is active (thus the assignment was not successful), the error message (A) appears:The requested auxiliary input does not meet the implement function requirements. The assignment cannot be made.
Press enter key F to reach the Auxiliary Controls page and check the auxiliary input assignment.
|
OUO6050,0001243-19-20100601 |
