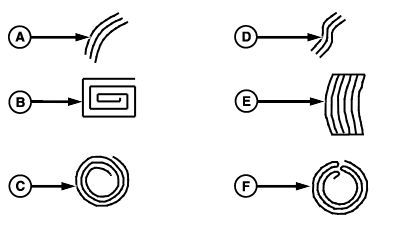

Guidance Patterns
PC9032-UN-17APR06
A - Simple Curve
B - Boxed
C - Spiral
D - S-Curve
E - Race Track
F - Circle
The method of searching all line segments allows an operator to drive and be guided along a variety of field patterns:- Simple Curve
- S-Curve
- Boxed
- Race Track
- Spiral
- Circle
Shift Track Operation
The use of shift track is not recommended when using Curve Track. Shift track will not compensate for inherent GPS drift in Curve Track mode.
|
OUO6050,00021FB-19-20061114 |
