Message Center

Message Center is used to access detailed diagnostic information and to manually initiate re-programming sessions. Message Center can also display detailed diagnostic information such as Control Unit Information and CAN Bus Information, used by your John Deere ™ Dealer for advanced troubleshooting.

Soft Keys are listed below:

• A-Message Center Reprogramming Page
• B-Transfer Debug Files
• C-Messages
• D-Diagnostic Addresses
• E-Trouble Codes
• F-Control Unit Information
• G- Bus Information

PC8663-UN-29APR15

MENU button

PC8655-UN-05AUG05

MESSAGE CENTER button (With Info Icon)

Message Center screen can be reached by selecting the MENU button then MESSAGE CENTER button (With Info Icon).

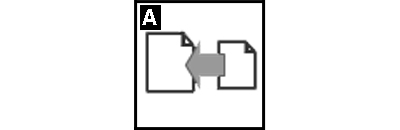

PC8665-UN-05AUG05

COMPONENTS AND SOFTWARE VERSIONS button

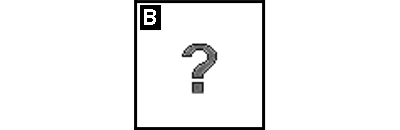

PC8666-UN-05AUG05

SOFTWARE INFORMATION button

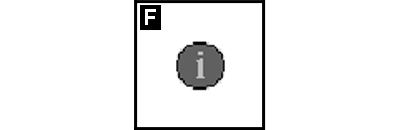

PC8667-UN-05AUG05

MESSAGES button

PC8668-UN-05AUG05

DIAGNOSTIC ADDRESSES button

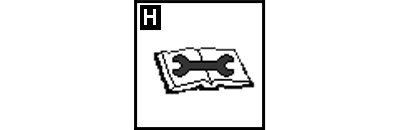

PC8669-UN-05AUG05

TROUBLE CODES button

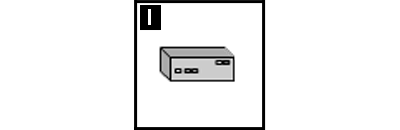

PC8670-UN-05AUG05

Electronic CONTROL UNIT INFORMATION button

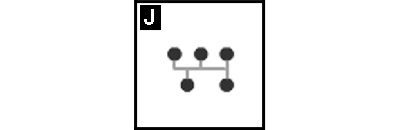

PC8671-UN-05AUG05

BUS INFORMATION button

Message center will display all active alarms, alert messages and icons.

PC8582-UN-01NOV05

CANCEL

PC8648-UN-01NOV05

CLEAR

PC8649-UN-01NOV05

ENTER

PC8650-UN-01NOV05

GOTO

PC8651-UN-01NOV05

NEXT CAL

PC8652-UN-01NOV05

RETURN

Message Center Icons

These icons are used throughout Message Center.

PC8663-UN-29APR15

MENU button

PC8655-UN-05AUG05

MESSAGE CENTER button (With Info Icon)

PC8665-UN-05AUG05

COMPONENTS AND SOFTWARE VERSIONS button

COMPONENTS AND SOFTWARE VERSIONS button will allow users to view all components on the network and the software versions loaded to them. You may also use the reprogram device button to reprogram a specific controller if necessary.

PC8663-UN-29APR15

MENU button

PC8655-UN-05AUG05

MESSAGE CENTER button (With Info Icon)

PC8668-UN-05AUG05

DIAGNOSTIC ADDRESSES button

Diagnostic Addresses

Diagnostic addresses are available to access specific diagnostic information. This information can assist the John Deere Dealer in diagnosing problems. Different device controllers can be selected from drop-down box, as shown.

Select DIAGNOSTIC ADDRESSES button. The number of devices available will depend upon machine configuration. The list of addresses can be scrolled up or down with rotary thumb wheel. Selecting an address will show data for that address.

PC8663-UN-29APR15

MENU button

PC8655-UN-05AUG05

MESSAGE CENTER button (With Info Icon)

PC8669-UN-05AUG05

TROUBLE CODES button

Trouble Codes

Select TROUBLE CODES button, a list of controllers will appear and controllers with diagnostic codes are indicated.

Individual controllers can be accessed by navigating with rotary thumb wheel and selected by selecting ENTER button, to view codes for that controller.

Codes can also be displayed for all controllers by selecting SHOW ALL button with rotary thumb wheel and selecting ENTER button. Codes can be relayed to a John Deere dealer to assist in diagnosing machine problems.

PC8663-UN-29APR15

MENU button

PC8655-UN-05AUG05

MESSAGE CENTER button (With Info Icon)

PC8670-UN-05AUG05

Electronic CONTROL UNIT INFORMATION button

PC8671-UN-05AUG05

BUS INFORMATION button

Device Info and Bus Status

When DEVICE INFO button is selected, controllers communicating on CANBUS communication system will be indicated. Message counts indicate quantity of communications from controller. When BUS STATUS button is selected, status of various communication networks will be indicated.
