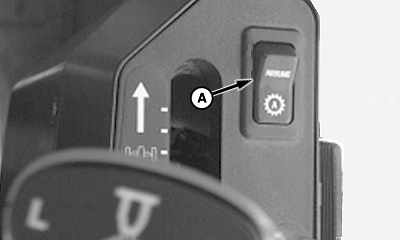

Resume Switch

N63532-UN-07AUG03

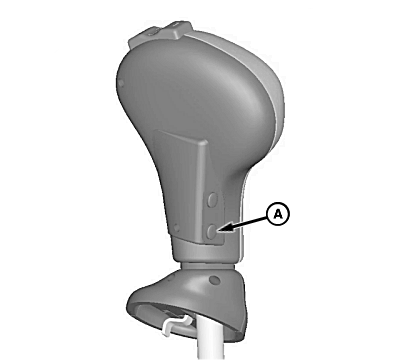

Sprayer

PC7989-UN-04NOV03

Sprayer

PC7925-UN-14OCT03

Combine

PC8629-UN-03AUG05

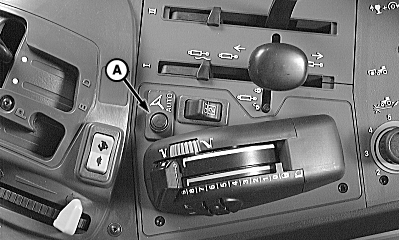

Tractor

PC8868-UN-02NOV05

Tractor

A - Resume Switch

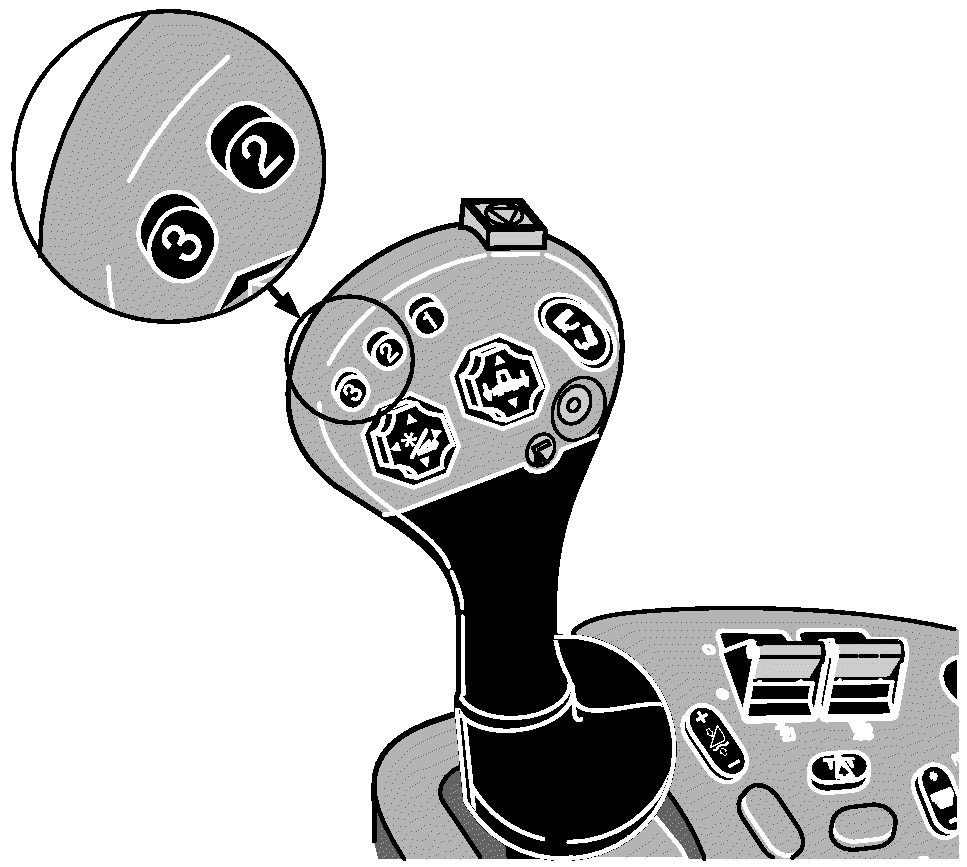

The Resume Switch (A) location may vary depending on vehicle type, model, and year. The pictures show where Resume Switch can be found on tractors, sprayers, and combines. Combines use button 2 or 3 on multifunction handle.

Resume Switch

Press the Resume Switch to move AutoTrac from the ENABLED stage to the ACTIVATED stage. Pictures show where Resume Switch can be found on tractors, sprayers, and combines. Combines use button 2 or 3 on multifunction handle.
