Height—TCM

PC12016-UN-22APR09

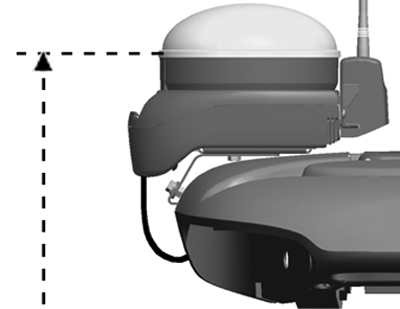

Height is measured from ground to middle of receiver dome.

IMPORTANT: Under or over compensation for vehicle roll angles will occur if height is incorrectly entered during setup (i.e. on a 10° slope with a StarFire height error of 30.5 cm (12 in.) will result in a position offset of 5 cm (2 in.) on ground).

Factory default setting is “126”. On some AutoTrac-equipped vehicles, height value will be automatically detected and entered during power up. Because this dimension is critical for proper operation of TCM and can vary due to vehicle configuration and tire sizes, operator should still measure actual distance to be entered each time TCM is installed on a different vehicle.

NOTE: Use chart for example StarFire Height values.

Press letter button next to STARFIRE HEIGHT and enter height using numeric keypad.

Press letter button next to STARFIRE HEIGHT again to save number.

NOTE: Chart figures are approximate heights.

NOTE: For greatest accuracy, manually measure receiver height distance.

John Deere Vehicle	StarFire Original Shroud Height cm (in.)	Deluxe Shroud Height cm (in.)
6000 Series Tractors	280 cm (111 in.)	291 cm (114.5 in.)
7000 Series Tractors	305 cm (120 in.)	314 cm (123.5 in.)
8000 Series Tractors	320 cm (126 in.)	329 cm (129.5 in.)
8000T Series Tractors	320 cm (126 in.)	329 cm (129.5 in.)
9000 Series Tractors	361 cm (142 in.)	370 cm (145.5 in.)
9000T Series Tractors	356 cm (140 in.)	365 cm (143.5 in.)
4700 Series Sprayers	389 cm (153 in.)	396 cm (156 in.)
4900 Series Sprayers	396 cm (156 in.)	396 cm (156 in.)
Combine	396 cm (156 in.)	396 cm (156 in.)
