Hours On After Shutdown

PC12064-UN-12MAY09

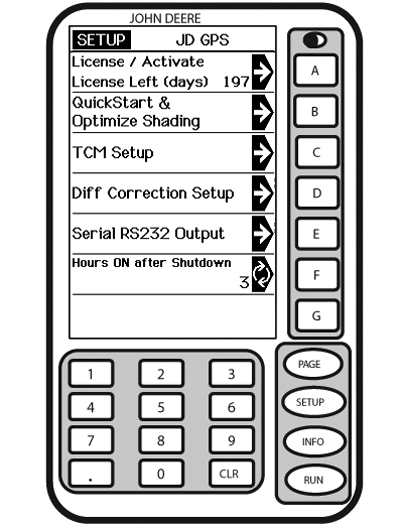

ORIGINAL GREENSTAR DISPLAY

A - License/Activate License Left (days)

B - QuickStart & Optimize Shading

C - TCM Setup

D - Diff Correction Setup

E - Serial RS232 Output

F - Hours ON after Shutdown

G - —

Press: SETUP >> StarFire 3000

Button next to HOURS ON AFTER SHUTDOWN defines how long receiver remains powered after ignition is turned off (0, 3, 6, 12 or 24 hours). If ignition is turned on within number of hours defined, receiver will re-establish full SF2 accuracy within a few seconds (assuming it had SF2 when ignition was turned off).

Operator can select amount time in hours system will stay on. Press letter button next to HOURS ON AFTER SHUTDOWN to toggle between settings. Setting from factory is 3 hours.
