Implement Setup

PC9419-UN-12SEP06

Setup Softkey

NOTE: Master switch must be off to change most settings or values.

PC12970-UN-27OCT10

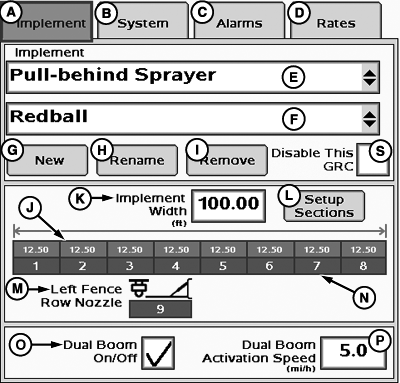

Pull-behind and Self-propelled Sprayer Implement Setup

PC12971-UN-27OCT10

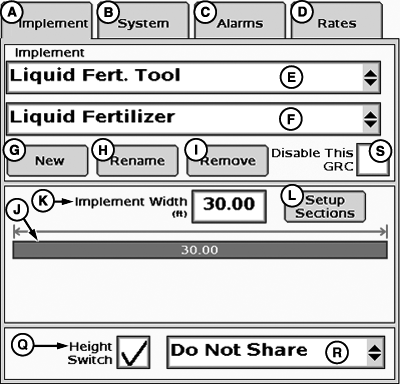

Liquid Fertilizer Tool Implement Setup

A - Implement Tab

B - Systems Tab

C - Alarms Tab

D - Rates Tab

E - Implement Type Drop-Down Menu

F - Implement Name Drop-Down Menu

G - New Button

H - Rename Button

I - Remove Button

J - Implement Section Widths

K - Implement Width Input Box

L - Setup Sections Button

M - Left Fence Row Nozzle

N - Associated Switchbox Switch Numbers

O - Dual Boom ON/OFF Check Box

P - Dual Boom Activation Speed Input Box

Q - Height Switch Check Box

R - Height Switch Message Drop-down Menu

S - Disable Rate Controller Check Box

Select the Implement tab (A) to enter implement setup.

NOTE: Switchbox switch numbers (N) will only be available if a switchbox is connected.
