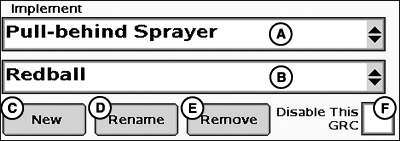

Implement Selection

PC12972-UN-27OCT10

A - Implement Type Drop-Down Menu

B - Implement Name Drop-Down Menu

C - New Button

D - Rename Button

E - Remove Button

F - Disable Rate Controller Check Box

1.
   PC10477-UN-01SEP07

   Implement Type Drop-Down Menu

   A - Pull-Behind Sprayer

   B - Self-Propelled Sprayer

   C - Liquid Fertilizer Tool

   D - NH3 Tool

   E - Planter

   Select desired implement type (pull-behind sprayer, self-propelled sprayer, liquid fertilizer tool) from the drop-down menu.

2. Select implement name from drop-down.

If no name has been added yet:

1. Select new.
2. Type new name on keypad.
3. Select enter.

If name needs to be revised:

1. Select implement name to be revised from drop-down.
2. Select rename.
3. Type new name on keypad.
4. Select enter.

If equipment name is no longer needed:

1. Select implement name to be deleted from drop-down.
2. Select remove.
3. Accept pop-up notification.

NOTE: If GRC will not be used but remain connected, check Disable this GRC check box to eliminate connection to display for Documentation, Swath Control, and controller warnings.

NOTE: A maximum of three implement configurations/names may be saved per controller.

NOTE: Rename does not affect System tab, Alarm tab, and Rates tab previously configured. Existing calibrations remain valid.

NOTE: Implement name must be defined before the System tab, Alarm tab, and Rates tab are enabled.
