System Setup

PC12974-UN-27OCT10

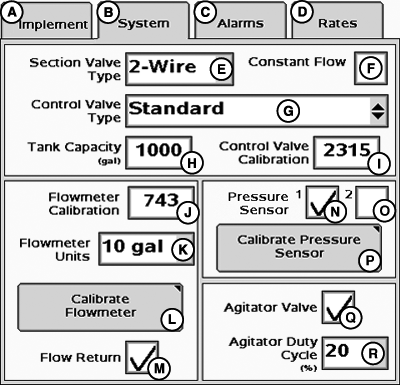

System Setup Page

A - Implement Tab

B - System Tab

C - Alarms Tab

D - Rates Tab

E - Section Valve Type Drop-Down Menu

F - Constant Flow Enable/Disable Box

G - Control Valve Type Drop-Down Menu

H - Tank Capacity Input Box

I - Control Valve Calibration Input Box

J - Flowmeter Calibration Input Box

K - Flowmeter Units Drop-Down Menu

L - Calibrate Flowmeter Button

M - Flow Return Enable/Disable

N - Pressure Sensor 1 Enable/Disable

O - Pressure Sensor 2 Enable/Disable

P - Calibrate Pressure Sensor Button

Q - Agitator Valve Enable/Disable

R - Agitator Duty Cycle Drop-Down Menu

Select System tab (B) to enter system setup.
