Implement Setup

PC9419-UN-12SEP06

Setup Softkey

NOTE: Master switch must be off to change most settings or values.

Select the Implement tab at the top to enter implement setup

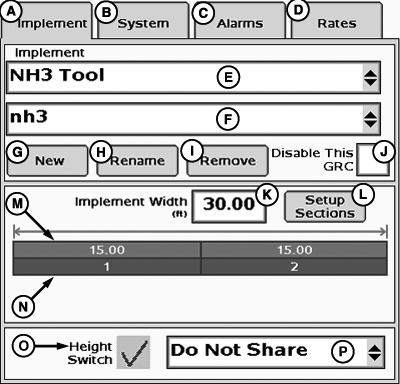

PC12981-UN-28OCT10

Implement Setup

A - Implement Tab

B - System Tab

C - Alarms Tab

D - Rates Tab

E - Implement Type Drop-Down Menu

F - Implement Name Drop-Down Menu

G - New Button

H - Rename Button

I - Remove Button

J - Disable Rate Controller Check Box

K - Implement Width Input Box

L - Setup Sections Button

M - Implement Section Widths

N - Associated Switchbox Switch Numbers

O - Height Switch Enable/Disable

P - Height Switch Message Drop-Down Menu

NOTE: Switchbox switch numbers (M) will only be available if a switchbox is connected.
