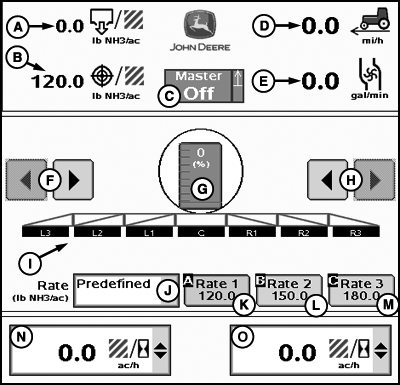

GreenStar Rate Controller Main Page

PC12560-UN-12APR10

GreenStar Rate Controller Main Page

A - Actual Rate

B - Target Rate

C - Master Switch Indicator/Implement Height Switch Indicator

D - Travel Speed

E - Flow (Volume per Time)

F - Left Section On/Off Buttons

G - Estimated Volume Remaining/Tank Refill Button

H - Right Section On/Off Buttons

I - Implement Sections

J - Rate Selection Drop-Down Menu

K - Predefined Rate 1

L - Predefined Rate 2

M - Predefined Rate 3

N - Information Drop-Down Menu

O - Information Drop-Down Menu

NOTE: Pressure (E): Pressure from pressure sensor 1 will be displayed instead of flow if system is configured for a pressure sensor.
