Implement Setup

PC9419-UN-12SEP06

Setup Softkey

NOTE: Master switch must be off to change most settings or values.

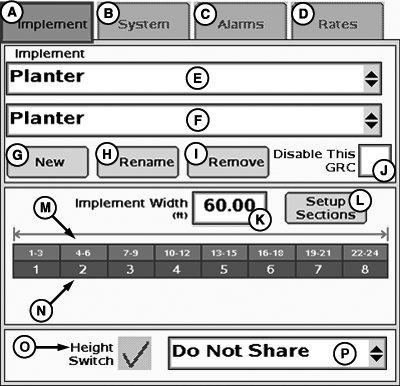

PC12989-UN-28OCT10

Planter Setup

A - Implement Tab

B - System Tab

C - Alarms Tab

D - Rates Tab

E - Implement Type Drop-Down Menu

F - Implement Name Drop-Down Menu

G - New Implement Button

H - Rename Implement Button

I - Remove Implement Button

J - Disable Rate Controller Check Box

K - Implement Width Input Box

L - Setup Sections Button

M - Implement Sections

N - Associated Switchbox Switch Numbers

O - Height Switch Check Box

P - Height Switch Message Drop-Down Menu

NOTE: The System tab, Alarm tab, and Rates tab are not enabled while planter is the selected implement.

NOTE: Switchbox switch numbers (M) will only be available if a switchbox is connected.
