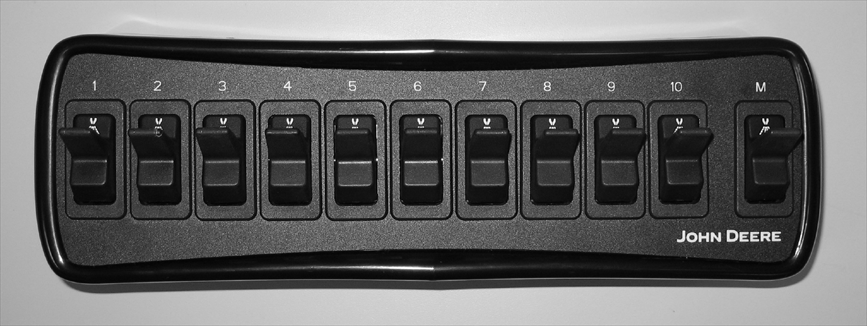

Switch Box

PC9470-UN-16OCT06

Switch Box Controller (Optional)

The purpose of the Optional Switch Box Controller (SBC) is to allow the operator to manually enable or disable individual implement sections rather than rely solely upon the display for these settings. Only ONE Switch Box Controller is needed even if using more than one GreenStar Rate Controller on an implement. The GreenStar Rate Controllers can share one switch box.

The master switch permits the operator to shut off all of the implement sections. The master switch on the switch box serves the same purpose as the foot switch, and only one of the two is required for system operation.

Each switch will either control an implement section and/or fence row nozzle. Each switch controls sections assigned to it during section setup procedure. Even if the master switch and implement section switches are on, implement sections must still be armed with the display in order to activate.

See SECTION SETUP for further details.

NOTE: More than one section can be assigned to the same switch number.
