Raven Direct Injection Pump Setup

Pump Setup

1.
   PC8663-UN-05AUG05

   Menu Softkey

   Select the menu softkey.

---




2.

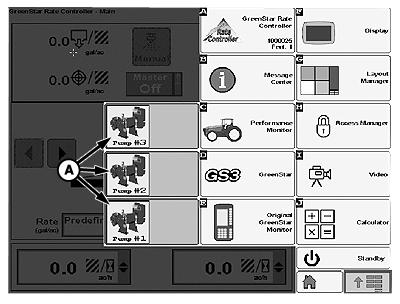

   PC14934-UN-04MAY12

   Raven Pump Softkey

   B - Raven Pump Softkey

   Select Raven Pump softkey (B).

---




3. If multiple pumps are used, the operator must set up each pump individually. Refer to the Raven Sidekick™ Pro operator’s manual for pump setup.

   NOTE: Master switch must be off to change most settings or values.

   NOTE: If more than one pump is being used, be sure that the pumps are NOT classified with the same pump number.

PC8663-UN-05AUG05

Menu Softkey

PC15160-UN-25MAY12

GreenStar Rate Controller Softkey

1. After the pump(s) have been set up, select the menu softkey, followed by the GreenStar Rate Controller softkey.

2.
   PC9419-UN-12SEP06

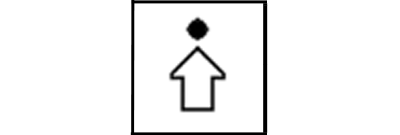

   Setup Softkey

   Select the Setup softkey to enter GreenStar Rate Controller setup.

   NOTE: Master switch must be off to change most settings or values.

---




3.
   PC14938-UN-03MAY12

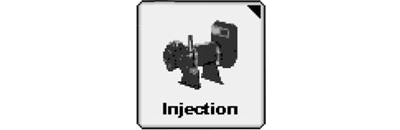

   Direct Injection Pump Softkey

   Select the direct injection pump softkey.

---




4.

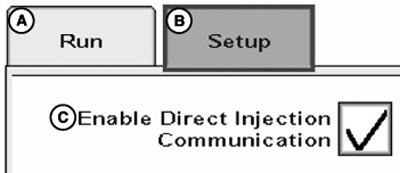

   PC14939-UN-07MAY12

   A - Run Tab

   B - Setup Tab

   C - Enable Direct Injection Communication Checkbox

   On the Setup tab (B), check Enable Direct Injection Communication checkbox (C).

---




5.

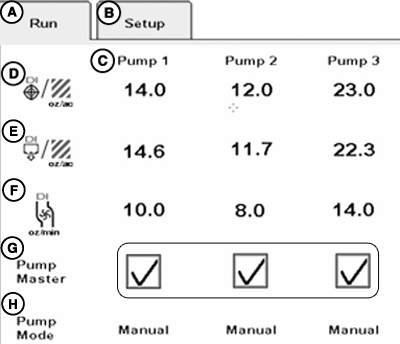

   PC14940-UN-25MAY12

   A - Run Tab

   B - Setup Tab

   C - Raven Pump

   D - Target Rate

   E - Applied Rate

   F - Flow Rate

   G - Pump Master Status

   H - Pump Mode

   Run tab (A) displays values based on initial setup done in Raven setup screens:
   • Target rate (D)
   • Applied rate (E)
   • Flow rate (F)
   • Pump mode (H)



   NOTE: Use the Raven Pump softkey to adjust values.

---




6. Pumps can be enabled or disabled by checking or unchecking the Pump Master checkboxes (G).

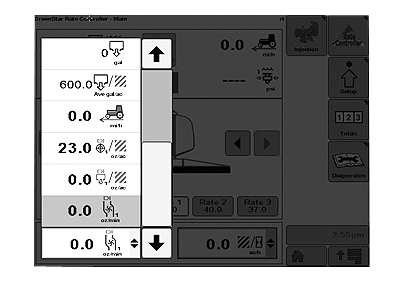

7. Rates can also be viewed on the GreenStar Rate Controller main run page and homepages by selecting the desired rate from the totals list.


   PC14941-UN-02MAY12

---
