Refilling Tank

PC11381-UN-08OCT08

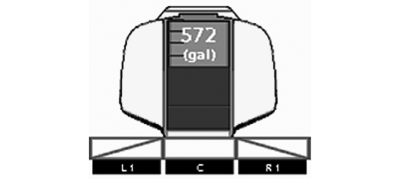

Estimated Volume Remaining

Reset estimated tank level after refilling.

Select estimated volume remaining/refill button.

PC11382-UN-08OCT08

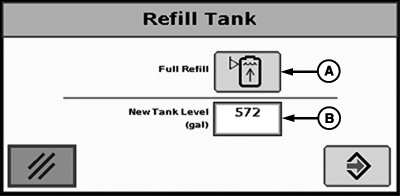

Refill tank

A - Full Refill

B - New Tank Level Input Box

If volume after refilling is full, select full refill button. This will set the tank level to the defined tank capacity.

When partially filling the tank, enter new level by pressing new tank level button and input estimated value.
