Refilling Tank

PC12283
PC12283-UN-16SEP09

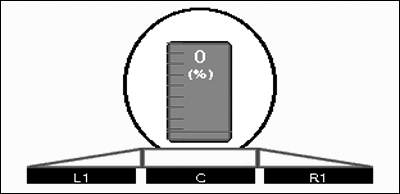

Estimated Volume Remaining

Reset estimated tank level after refilling.

Select estimated volume remaining/refill button.

PC11347
PC11347-UN-02OCT08

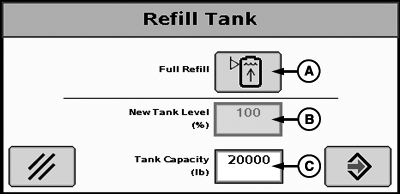

Refill tank

A - Full Refill

B - New Tank Level Input Box

C - Tank Capacity Input Box

If volume after refilling is full, select full refill button. This will set the tank level to the defined tank capacity.

If only partially filling the tank, enter new level by pressing new tank level button and input estimated value. If tank size has changed, enter new tank capacity.

JS56696,0000729-19-20091014
