Main Screen Indications

PC12319-UN-06OCT09

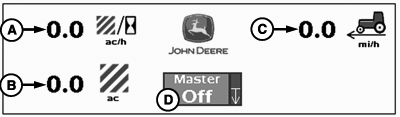

Main Screen Indications

A - Area Per Hour

B - Total Area

C - Travel Speed

D - Master Switch Indicator/Implement Height Switch Indicator

The height switch indicator may be either in an up or down position to give a visual indication relative to the implement.

NOTE: To verify the height switch operates correctly, raise and lower the implement while observing the height switch indicator.
