Setup Height Switch CAN Message

PC12603-UN-12MAY10

PC12605-UN-12MAY10

Height Switch Message drop down menu

A - Height Switch Check Box

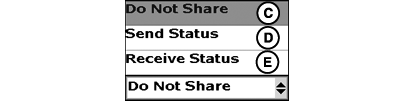

B - Height Switch Message Drop-down Menu

C - Do Not Share

D - Send Status

E - Receive Status

• Select Send Status, Receive Status, or Do Not Share.

• If using GreenStar Rate Controllers in a Multi-Product configuration, a single height switch can be shared among multiple GreenStar Rate Controllers.

• The height switch must be connected to one GreenStar Rate Controller and that GreenStar Rate Controller must be configured to SEND the height switch status to the other GreenStar Rate Controllers.

• Each additional GreenStar Rate Controller must be configured to RECEIVE the height switch status.

• There is an additional option of DO NOT SHARE that can be used if multiple height switches are desired in the application or operating with a single GreenStar Rate Controller.
