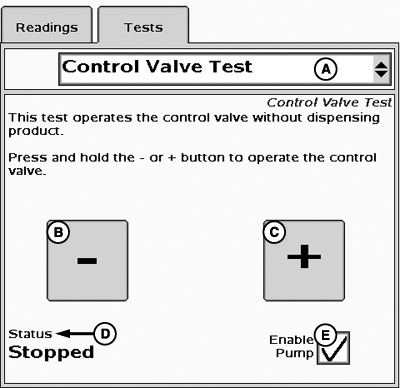

Control Valve Test

PC14160-UN-10NOV11

Control Valve Test

A - Tests Drop-Down Menu

B - - Button

C - + Button

D - Control Valve Teat Status

E - Enable Pump Check Box

F -

This test operates the control valve without dispensing product.

NOTE: This test is not available with Fast Close and PWM Close control valves.

Enable Pump Checkbox (E) will only be displayed if control valve type is PWM and Pump Enable checkbox was selected in PWM settings.

Press and hold the - or + button to operate the valve.
