Energize System

PC13151
PC13151-19-17FEB11

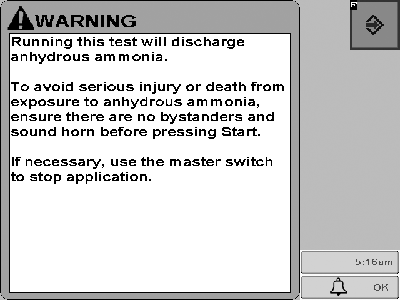

This message will be displayed when the Energize System test is selected on NH3 systems.

PC12566
PC12566-UN-13APR10

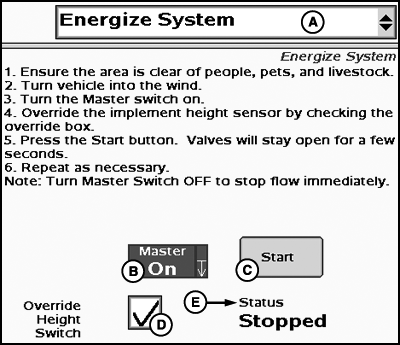

Energize System Test

A - Tests Drop-Down Menu

B - Master Switch Indicator/Implement Height Switch Indicator

C - Start Energize System Test Button

D - Override Height Switch Enable/Disable

E - Energize System Status

The Energize System procedure is used to test for flow at the openers, purge air and vapor from the NH3 delivery system and fill the cooler and hoses with liquid anhydrous. Upon pressing the start button, the control valve and section valve(s) will be fully opened for a few seconds, after which time they will automatically close. The Master Switch can be turned off at any time to immediately force the valves to return to the closed position.

NOTE: Turn Master Switch OFF to stop flow immediately.

    To begin Energize System test:

  1. Select Energize System from the tests drop-down menu.
  2. Ensure the area is clear of people, pets, and livestock.
  3. Turn vehicle into the wind.
  4. Turn the Master Switch ON
  5. Override the implement height switch sensor by checking the override box.
  6. Select the Start button. Valves will stay open for a few seconds.
  7. Repeat as necessary.
  8. Turn Master Switch OFF to stop flow immediately.

NOTE: The override height switch box must be checked each time the test is run.

HC94949,00004FA-19-20140501
