Bleed Section Test

PC13151-19-17FEB11

This message will be displayed when the Energize System test is selected on NH3 systems.

PC12299-UN-22SEP09

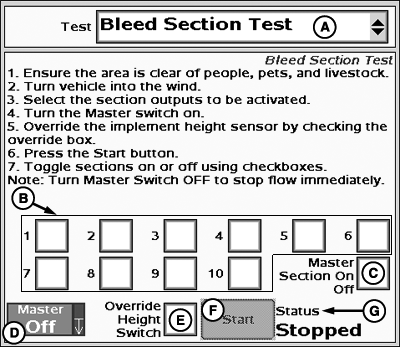

Bleed Section Test

A - Tests Drop-Down Menu

B - Section output Checkboxes

C - Master Section ON/OFF Checkbox

D - Master Switch Indicator

E - Override Height Switch Checkbox

F - Start Bleed Section Test

G - Bleed Section Test Status

The Bleed Section Test allows the operator to bleed trapped anhydrous ammonia from high pressure lines between section valves and the control valve while remaining seated in the cab.

NOTE: Turn Master Switch OFF to stop flow immediately.

1. Select Bleed Section Test from the tests drop-down menu.
2. Ensure the area is clear of people, pets, and livestock.
3. Turn vehicle into the wind.
4. Select the section outputs to be activated.
5. Turn the Master Switch on.
6. Override the implement height sensor by checking the override box.
7. Press the Start button.
8. Toggle sections on or off using the checkboxes.

Master Section On/Off Check Box - This check box is displayed when the control valve type is Standard or Fast. The operator can check this box if a Master Section Valve is present and it needs to be activated for the test.
