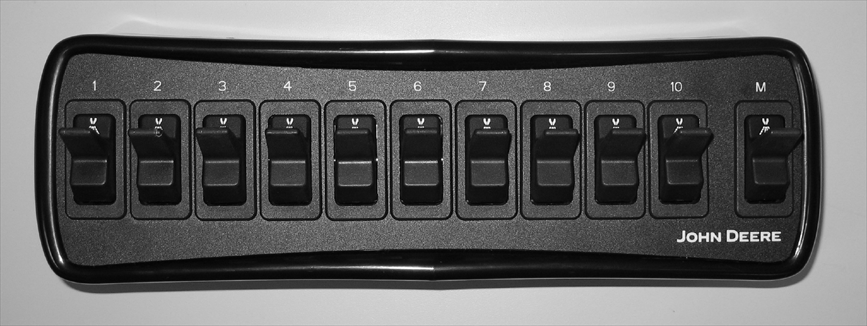

Switch Box

PC9470-UN-16OCT06

Switch Box Controller (Optional)

The purpose of the optional switch box controller (SBC) is to allow the operator to enable or disable individual control valves manually rather than rely on display for these settings.

The master switch permits the operator to shut off conveyor and meter control valves. The master switch on the switch box serves the same purpose as the foot switch, and only one of the two is required for system operation.

Each switch controls control valves assigned to it during system setup procedure. Even if the master switch and individual switches are on, control valves must still be armed with the display in order to activate.

(For more information, see System Setup in Configuring and Setting Up Sprayers and Liquid Fertilizer Tool, Configuring and Setting up NH3 Tool, and Configuring and Setting Up Planter sections.)

NOTE: More than one control valve can be assigned to the same switch number.
