Raven Direct Injection Pump Setup (If Equipped)

Pump Setup

1.
   PC8663-UN-08DEC14

   Menu Softkey

   Select menu softkey.

---




2.
   PC14934-UN-04MAY12

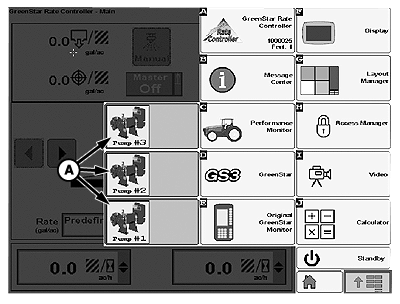

   Raven Pump Softkey

   A - Raven Pump Softkey

   Select Raven Pump softkey (A).

---




3. If multiple pumps are used, set up each pump individually (see Raven Sidekick™ Pro Operator’s Manual for pump setup).

   NOTE: If more than one pump is being used, be sure that the pumps are not classified with the same pump number.

4.
   PC8663-UN-08DEC14

   Menu Softkey


   PC15160-UN-25MAY12

   GreenStar™ Rate Controller Softkey

   Select menu softkey.

---




5. Select controller softkey.

6.
   PC9419-UN-12SEP06

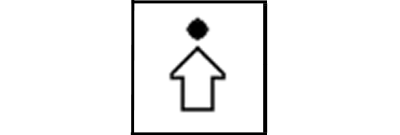

   Setup Softkey

   Select Setup softkey to enter controller setup.

   NOTE: Turn off master switch to change most settings or values.

---




7.
   PC20508-UN-09DEC14

   System Tab

   A - System Tab

   B - Constant Flow Checkbox

   Select System tab (A).

---




8. If Raven Sidekick™ Pro is being used on a sprayer or liquid fertilizer tool, uncheck Constant Flow (B).

9.
   PC14938-UN-03MAY12

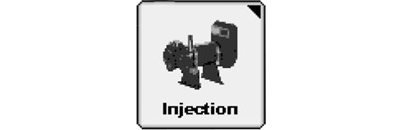

   Direct Injection Pump Softkey

   Select direct injection pump softkey.

---




10.
    PC20374-UN-04DEC14

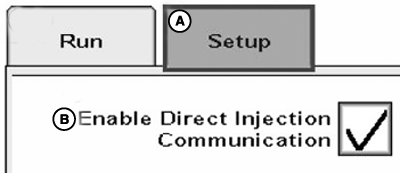

    Enable Direct Injection Communication Checkbox

    A - Setup Tab

    B - Enable Direct Injection Communication Checkbox

    On Setup tab (A), select Enable Direct Injection Communication checkbox (B).

---




11.
    PC20618-UN-18DEC14


    PC14941-UN-02MAY12

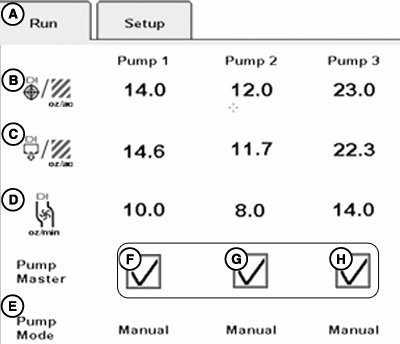

    A - Run Tab

    B - Target Rate

    C - Applied Rate

    D - Flow Rate

    E - Pump Mode

    F–H - Pump Master Checkbox

    Run tab (A) displays values based on initial setup done in Raven setup screens:
    • Target rate (B)
    • Applied rate (C)
    • Flow rate (D)
    • Pump mode (E)



    NOTE: Use Raven Pump softkey to adjust values.

---




12. Enable pumps by checking checkbox (F–H).

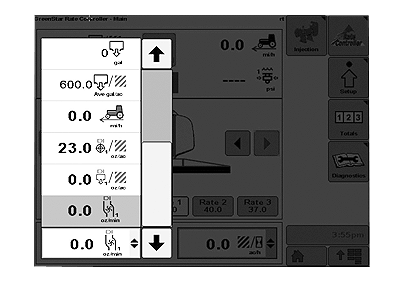

    NOTE: Rates can be viewed on controller main run page and homepages by selecting the desired rate from the totals list.
