Implement Setup

1.
   PC9419-UN-12SEP06

   Setup Softkey

   Select Setup.

   NOTE: Turn off Master Switch to change most settings or values.

---




2.

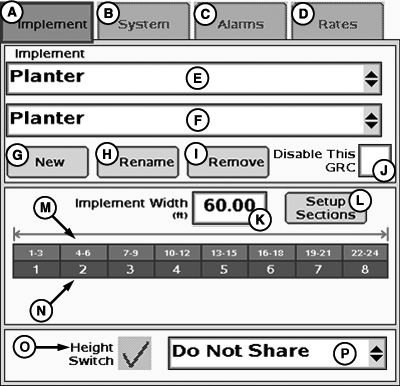

   PC12989-UN-28OCT10

   A - Implement Tab

   B - System Tab

   C - Alarms Tab

   D - Rates Tab

   E - Implement Type Drop-Down Menu

   F - Implement Name Drop-Down Menu

   G - New Implement Button

   H - Rename Implement Button

   I - Remove Implement Button

   J - Disable Rate Controller Checkbox

   K - Implement Width Input Box

   L - Setup Sections Button

   M - Implement Sections

   N - Associated Switch Box Switch Numbers

   O - Height Switch Checkbox

   P - Height Switch Message Drop-Down Menu

   Select Implement tab (A).

   NOTE: Switchbox switch numbers (N) are only available if a switchbox is connected.

---
