Implement Section States

PC12282-UN-16SEP09

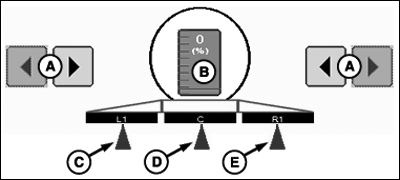

Implement Sections Spraying

A - Section ON/OFF Buttons

B - Tank Level/Tank Refill

C - Left Section Active

D - Center Section Active

E - Right Section Active

Implement sections can be in one of three states:

• Disabled—Section is disabled.
• Enabled—Section is enabled.
• Active—Section is applying.

Section on/off buttons (A) enable or disable one section at a time from left to right or right to left. The operator can also enable/disable sections with the switch box in the cab.

Section nozzles have colored triangle indications under implement sections to show active status.

Enabled sections have black fill color indication. Sections that are in the off state have white fill color indication.

Active sections have blue fill color triangle indication under the section.
