Verify User-Defined Values

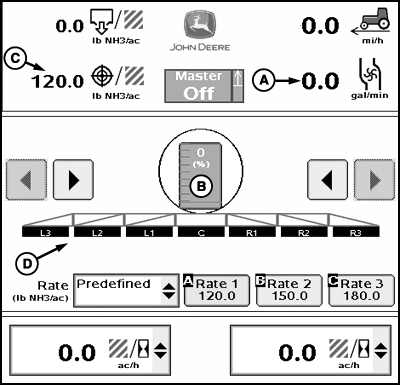

PC20752-UN-29JAN15

A - Flow (Volume Per Time)

B - Tank Levels Button

C - Target Rate

D - Section Indicators

NOTE: Pressure (A): Pressure from pressure sensor 1 is displayed instead of flow if system is configured for a pressure sensor.

1. Verify tank levels (B) for accuracy.

2. Verify target rate (C).

3. Verify section indicators (D) for accuracy.
