Rates Setup

1.

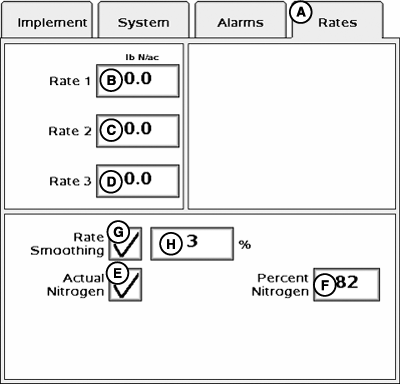

   PC20608-UN-17DEC14

   A - Rates Tab

   B–D - Target Rate Input Boxes

   E - Actual Nitrogen Checkbox

   F - Percent Nitrogen Input Box

   G - Rate Smoothing Checkbox

   H - Rate Smoothing Percentage Input Box

   Select Rates tab (A).

---




2. Input Target Rates (B–D).

   NOTE: Values entered on this page are available on the home page.

3. Enable Actual Nitrogen (E) and input Percent Nitrogen (F), if needed.

   NOTE: When Actual Nitrogen is enabled, Percent Nitrogen input box appears. Entering a Percent Nitrogen value converts application rates to mass of Nitrogen rather than mass of total product applied.

4. Enable Rate Smoothing (G), and enter user-defined Rate Smoothing percent (H).

   NOTE: Rate Smoothing percentage range is 3-15% and system defaults to 3%.
