Alarms Setup (Optional)

PC20610-UN-17DEC14

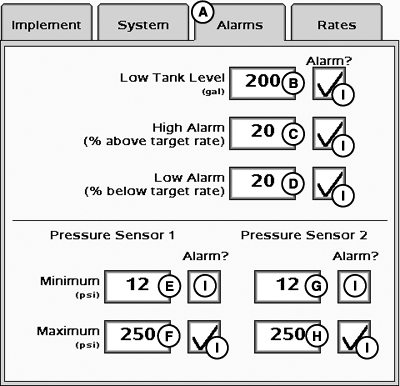

Alarm Setup

A - Alarms Tab

B - Low Tank Level Input Box

C - High Alarm Input Box

D - Low Alarm Input Box

E - Minimum Pressure Input Box

F - Maximum Pressure Input Box

G - Minimum Pressure Input Box

H - Maximum Pressure Input Box

I - Alarm Checkbox

Alarms allow the operator to predefine alerts for application rate and low tank level. Alarms are percentage based, and alert the operator when the value goes outside of range. For example, if the application rate is set to 100 and the alarm is set at 20, the alert triggers when the application rate is below 80 or above 120.

1. Select Alarms tab (A).

2. Enter Low Tank Level volume (B).

3. Enter High Alarm (C) and Low Alarm (D) percent rates.

4. Enter Minimum pressure (E) and Maximum pressure (F) for Pressure Sensor 1, if equipped.

5. Enter Minimum pressure (G) and Maximum pressure (H) for Pressure Sensor 2, if equipped.

6. Enable desired alarm checkboxes (I).
