Rate Control

Implement Section and Rate Control

1.
   PC12550-UN-09APR10

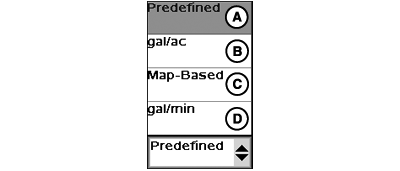

   Rate Selection Drop-Down Menu (US Units)


   PC20639-UN-06JAN15

   Predefined Rates


   PC20640-UN-06JAN15


   PC20641-UN-06JAN15

   Map-Based Rates


   PC20642-UN-06JAN15

   Rates Based on Mass Per Unit of Area

   A - Predefined

   B - gal/ac (US Units)

   C - Map-Based

   D - gal/min (US Units)

   E - Predefined Rate 1 Button

   F - Predefined Rate 2 Button

   G - Predefined Rate 3 Button

   H - Rate Selection Drop-Down Menu

   Choose an available rate type (A–D).

---

Predefined Rates

Predefined rates are limited to a maximum of three. These rates can be set up on the setup page under Rates tab.

The letters on the top left corner of each rate button (E–G) represent the shortcut buttons that are available when using a display control (for more information on a display control, see GreenStar™ 3 2630 Display Operator's Manual).

Rate Based on Volume Per Unit of Area

A rate based on volume per unit of area can be set by choosing one of the items from the rate selection drop-down (H). This rate mode ensures a consistent application rate over an area as working width and machine speed are adjusted.

• gal/ac (US Units)
• L/ha (Metric Units)
• I Gal/ac (Imperial Units)

Map-Based Rates

To run map-based rates, select prescription in GreenStar™ documentation. Map-based only appears in the drop-down if a prescription is selected.

Rates Based on Flow

A rate based on flow can be set by choosing one of the items from the rate selection drop-down (H). This rate mode ensures a constant flow rate regardless of changes in machine speed. A decrease in rate maybe visible when sections are disabled.

• gal/min (US Units)
• L/min (Metric Units)
• I Gal/min (Imperial Units)
