Set Up Height Switch CAN Message

PC20783
PC20783-UN-03FEB15

Height Switch

PC20784
PC20784-UN-03FEB15

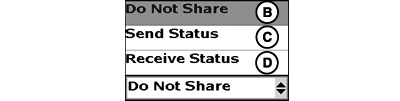

Height Switch Message Drop-Down Menu

A - Height Switch Check Box

B - Do Not Share

C - Send Status

D - Receive Status

If using GreenStar™ Rate Controllers in a Multi-Product configuration, one rate controller can share height switch (A) status among multiple controllers.

NOTE: Do Not Share (B) can be used if multiple height switches are desired in the application or operating with a single controller.

  1. Connect height switch to one controller.

  2. Configure that controller to Send Status (C).

  3. Configure each additional controller to Receive Status (D).
