Refilling Tank

1.
   PC11381-UN-08OCT08

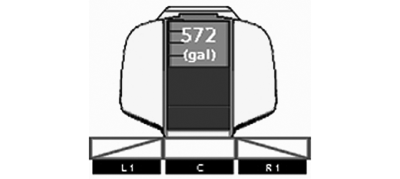

   Estimated Volume Remaining


   PC11382-UN-08OCT08

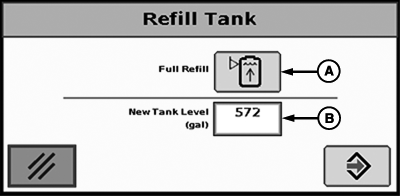

   A - Full Refill Button

   B - New Tank Level Input Box

   Reset estimated tank level after refilling.

---




2. Select estimated volume remaining/refill button.

3. If volume after refilling is full, select Full Refill (A). This sets tank level to defined tank capacity.

4. When partially filling tank, enter new level by pressing new tank level button and input estimated value (B).
