Verify User-Defined Values

PC20745-UN-28JAN15

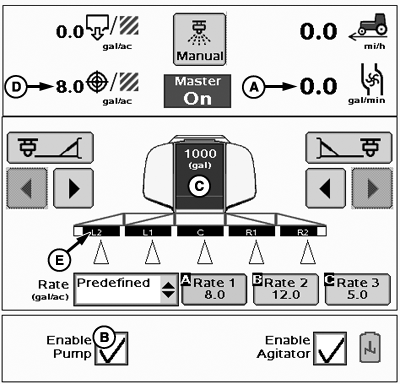

GreenStarGreenStar™ Rate Controller Main Page

A - Travel Speed

B - Enable Pump Checkbox

C - Tank Level Indicator Button

D - Target Rate

E - Implement Sections

NOTE: Pressure (A): Pressure from pressure sensor 1 will be displayed instead of flow if system is configured for a pressure sensor.

Enable Pump (B): Information drop-down menu will be displayed if Pump Enable was not selected in PWM Settings.

1. Verify tank level for accuracy (C).

2. Verify target rates (D).

3. Verify section indicators for accuracy (E).
