Manual Spray Operation

PC12332-UN-14OCT09

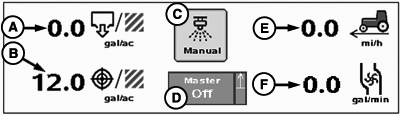

Main Screen Indications

A - Actual Rate

B - Target Rate

C - Manual Spray Button

D - Master Switch Indicator/Implement Height Switch Indicator

E - Travel Speed

F - Flow (Volume per Time)

Manual Spray button (C) forces controller to apply product at the present application rate or minimum flow rate (whichever is greater). It overrides John Deere Section Control and machine speed threshold for a duration of 5 sec. when pressed. A countdown indicator appears when this function is enabled. It may be pressed any time during countdown period to reset the counter back to 5 seconds. Minimum flow rate is controlled until speed and target rate warrant a higher flow rate. Manual Spray button is disabled if minimum flow rate is zero.

NOTE: To verify height switch operates correctly, raise and lower implement while observing height switch indicator.

Height switch indicator displays whether the implement is in up or down position.
