Set Up Implement Sections

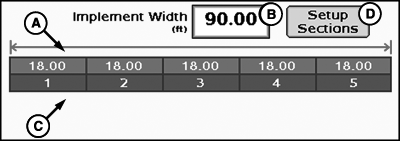

PC20372
PC20372-UN-04DEC14

Setup Sections

A - Implement Section Widths

B - Implement Width Input Box

C - Associated Switchbox Switch Numbers

D - Setup Sections Button

Initial implement width (A) may be entered into the Implement Width input box (B). The width entered is evenly distributed among sections.

If implement sections are different widths or associated switches (C) are different, select Setup Sections button (D) and follow onscreen instructions. Fence row nozzles are also included under setup sections.

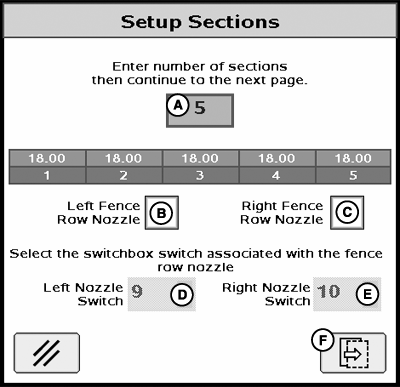

  1. PC20342
    PC20342-UN-25NOV14

    PC20343
    PC20343-UN-25NOV14

    A - Number of Sections Input Box

    B - Left Fence Row Nozzle Checkbox

    C - Right Fence Row Nozzle Checkbox

    D - Left Fence Row Nozzle Switchbox Switch Association Drop-down Menu

    E - Right Fence Row Nozzle Switchbox Switch Association Drop-down Menu

    F - Next Button

    G - Width of Section Button

    H - Switchbox Switch Number Association Drop-down Menu

    Enter number of sections (A).

    NOTE: Switchbox information is hidden when no switchbox is connected.


  2. Select fence row nozzle checkboxes (B and C), if equipped.

  3. Indicate switch number (D and E) associated with each fence row nozzle, if equipped.

  4. Select Next (F) to enter each individual section width (G) and associated switchbox number (H).

HC94949,0000738-19-20150202
