Implement Selection

PC20746
PC20746-UN-28JAN15

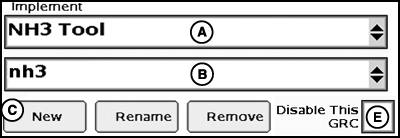

Implement Selection

PC20747
PC20747-UN-30JAN15

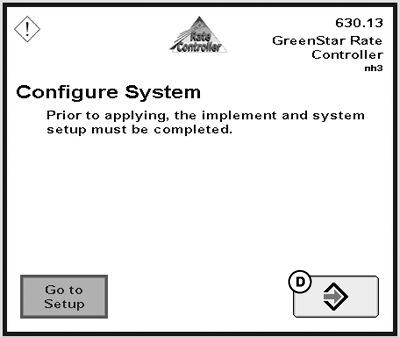

Configuration Notification

A - Implement Type Drop-Down Menu

B - Implement Name Drop-Down Menu

C - New Button

D - Accept Button

E - Disable This GRC Checkbox

Implement name must be defined before System, Alarms, and Rates tabs are enabled.

  1. Select desired Implement type from drop-down (A).

  2. Select implement name from drop-down (B) or select New (C), and enter implement name.

  3. For new setup, select Accept (D) on configuration notification.

NOTE: If GreenStar™ Rate Controller will not be used but remain connected, select Disable This GRC (E) to eliminate connection to display for Documentation, John Deere Section Control, and controller warnings.

GreenStar is a trademark of Deere & Company

HC94949,000073C-19-20150204
