Implement Selection

PC20748
PC20748-UN-29JAN15

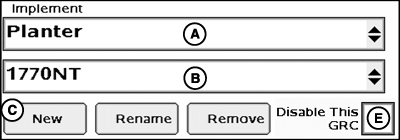

Implement Selection

PC20749
PC20749-UN-30JAN15

Configuration Notification

A - Implement Type Drop-Down Menu

B - Implement Name Drop-Down Menu

C - New Button

D - Accept Button

E - Disable This GRC Checkbox

Implement name must be defined before System, Alarms, and Rates tabs are enabled.

  1. Select desired Implement type from drop-down (A).

  2. Select implement name from drop-down (B) or select New (C), and enter implement name.

  3. For new setup, select Accept (D) on configuration notification.

NOTE: If GreenStar™ Rate Controller will not be used but remain connected, select Disable This GRC checkbox (E) to eliminate connection to display for Documentation, John Deere Section Control, and controller warnings.

GreenStar is a trademark of Deere & Company

HC94949,000073E-19-20150204
