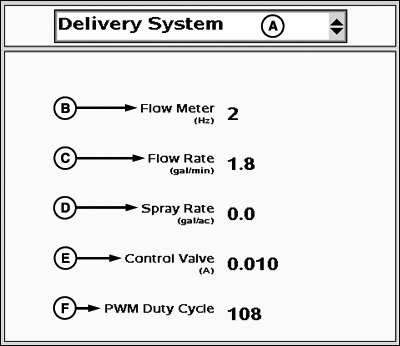

Delivery System Readings

PC12257-UN-07OCT09

A - Readings Selection Drop-Down Menu

B - Flow Meter Frequency

C - Flow Rate

D - Spray Rate

E - Control Valve Current

F - PWM Duty Cycle

PWM Duty Cycle—This number represents the current position of the PWM / PWM Close Control Valve. The number will be between the current High and Low Limit settings previously defined by the operator.
