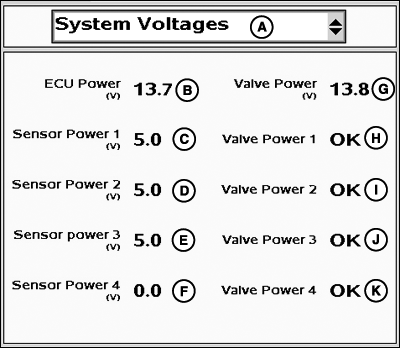

System Voltages Readings

PC12255-UN-06OCT09

A - Readings Selection Drop-Down Menu

B - ECU Power

C - Sensor 1 Power

D - Sensor 2 Power

E - Sensor 3 Power

F - Sensor 4 Power

G - Valve Power

H - Valve 1 Power

I - Valve 2 Power

J - Valve 3 Power

K - Valve 4 Power

NOTE: Sensor Power 4 is not currently used, expected value is 0.

NOTE: Valve Power will be "None" if Valve Power is not connected.
