Delivery System Readings

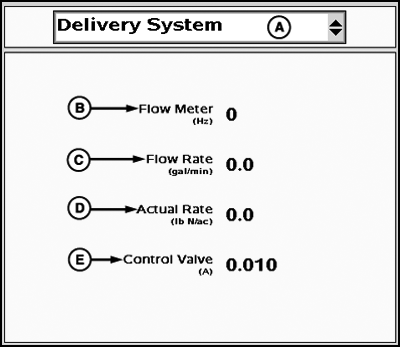

PC12289-UN-06OCT09

Delivery System Readings

A - Readings Selection Drop-Down Menu

B - Flow Meter Frequency

C - Flow Rate

D - Spray Rate

E - Control Valve Current

Actual Rate - The Actual Nitrogen Check Box on the Rates Tab will determine the units that are referenced for the Actual Rate. Check this box for lb N/ac. Uncheck this box for lb NH3/ac.
