Planter Home Page

PC12320-UN-06OCT09

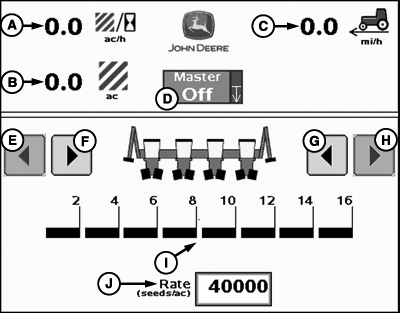

Main Planter Screen
A - Area Per Hour
B - Total Area
C - Travel Speed
D - Master Switch Indicator/Implement Height Switch
Indicator
E - Left Sections OFF Button
F - Left Sections ON Button
G - Right Sections ON Button
H - Right Sections Off Button
I - Section Indicator
J - Seed Rate Input Box
NOTE: The seed rate input box is for documentation purposes.
This box will not be documented if connected to a SeedStar controller.
|
|
