System Voltages Readings

PC12304-UN-06OCT09

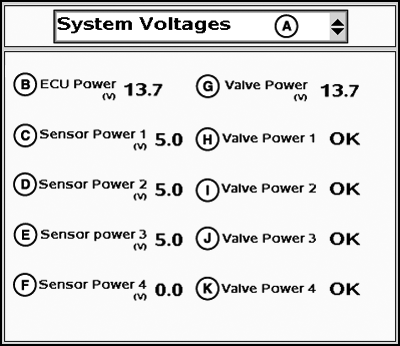

System Voltages

A - Reading Type Drop-Down Menu

B - ECU Power

C - Sensor Power 1

D - Sensor Power 2

E - Sensor Power 3

F - Sensor Power 4

G - Valve Power

H - Valve Power 1

I - Valve Power 2

J - Valve Power 3

K - Valve Power 4

NOTE: Sensor Power 4 is not currently used, expected value is 0.

NOTE: Valve Power will be "None" if Valve Power is not connected.
