System Speed Signal

PC9827-UN-20NOV06

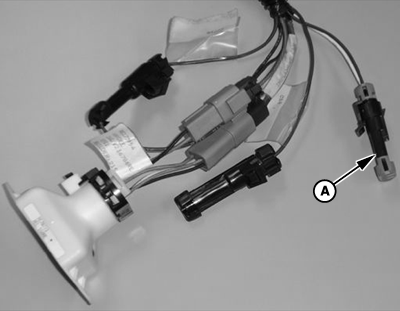

GreenStar Harness

A - 2-Pin Connector

The GreenStar Rate Controller System requires an approved speed signal.

If the vehicle has no John Deere GPS receiver, the GreenStar Rate Controller can utilize a speed source (radar or wheel speed) on CAN or CCD Bus. If no speed source is available, it will be necessary to install a radar based speed sensor.

Use wire 211 (brown wire) in the 2-pin connector (A) to interface to the radar sensor.
