Calibrate Flowmeter - Applied

The Calibrate Flowmeter - Applied test allows the operator to apply a known amount of product and enter the known amount to calibrate the flowmeter.

Applied Product Test Description (B) - Adjusts the calibration value by comparing the rate controller’s amount applied to the actual amount applied.

1.

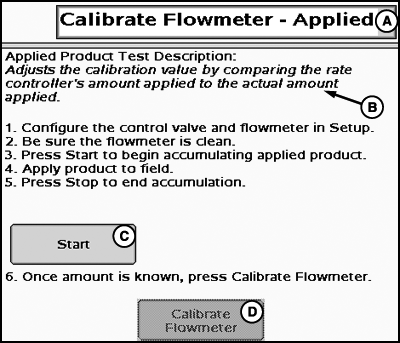

   PC12557-UN-12APR10

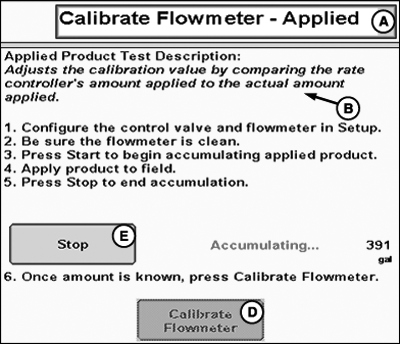

   PC12620-UN-19MAY10

   A - Tests Drop-Down Menu

   B - Applied Product Test Description

   C - Start Button

   D - Calibrate Flowmeter Button

   E - Stop Button

   Configure the control valve and flowmeter in Setup (Softkey G).

   NOTE: Master Switch must be off to enter data.

---




2. Select Calibrate Flowmeter - Applied from the Tests drop-down menu.

3. Be sure the flowmeter is clean.

4. Press Start to begin accumulating applied product.

   NOTE: While product is being applied the operator can navigate away from this page and return when he has applied a sufficient amount of product to complete the calibration.

5. Apply Product to field.

6. Press Stop to end accumulation.

7.

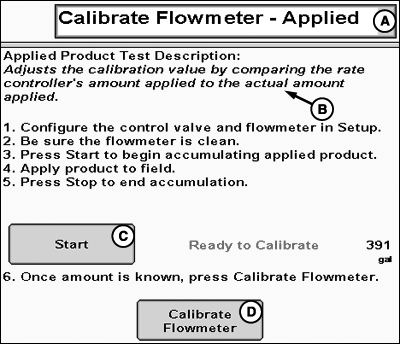

   PC12621-UN-19MAY10

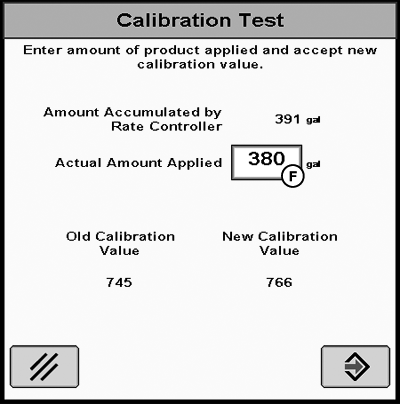

   PC12622-UN-19MAY10

   A - Tests Drop-Down Menu

   B - Applied Product Test Description

   C - Start Button

   D - Calibrate Flowmeter Button

   F - Actual Amount Applied Input Box

   Once amount is known, press Calibrate Flowmeter button.

---




8. Enter the actual amount applied into the input box and press the Enter button.
