Engage Active Implement Guidance

1. IMPORTANT: If steering device is not in contact with ground, Active Implement Guidance cannot effectively steer implement.

   NOTE: For ease of instruction, this manual uses selective control valve (SCV) 3 for the Active Implement Guidance system. Operator can choose to use SCV 1 if preferred.


   PC18002-UN-11DEC13


   PC18234-UN-11DEC13


   PC18004-UN-11DEC13

   A - SCV 3 Control Lever

   B - SCV Right-Hand Console

   C - Auto Not Operating

   D - Auto Operating

   E - AutoTrac™ Resume Switch

   Set up guidance line on GreenStar™ Display.

---




2. NOTE: SCV cannot change to AUTO or AC mode when machine is in park.

   Take machine out of park.

3. NOTE: Leave SCV 3 in detent after each pass.

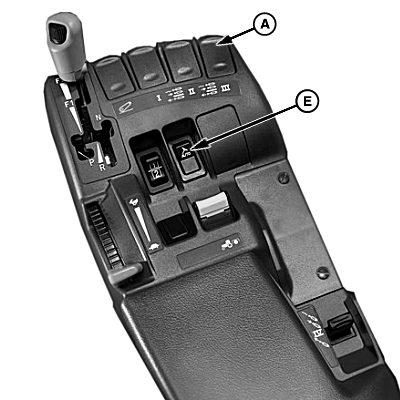

   Using SCV controls, move SCV 3 control lever (A) to detent position to activate implement guidance.

4. NOTE: If operating a machine with CommandCenter™ Display, ensure that SCV has a check mark next to AUTO.

   (Reference Adjust Selective Control Valves — R Series Tractors for more information.)

   (Reference machine Operator’s Manual for more information on CommandCenter™ Display SCV controls.)

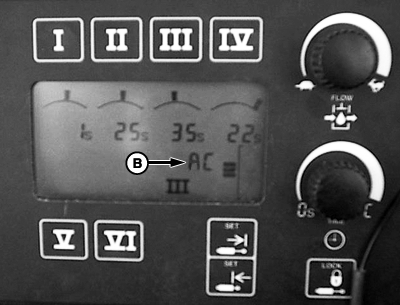

   Verify EC (manual SCV control) on right-hand console (B) changes to AC (automatic SCV control).

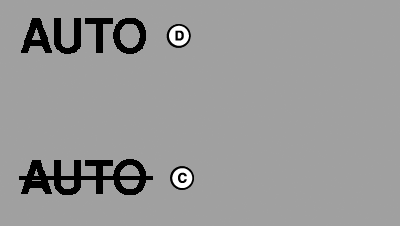

   If operating a machine with CommandCenter™ Display, status indicator changes from Auto with a line through it (C) to Auto (D).

5. IMPORTANT: If AutoTrac™ Only is the requirement to engage, Active Implement Guidance begins acquiring line immediately after AutoTrac™ resume switch (E) is selected. For implements using a coulter steering system, movement starts even if implement is not in contact with ground.

   Select resume switch to activate AutoTrac™ and Active Implement Guidance simultaneously. Machine and implement steer toward guidance line.

   NOTE: Active Implement Guidance operates in reverse for 45 sec. After 45 sec., AutoTrac™ and Active Implement Guidance disengage.
