Optimize Terrain Compensation Module (TCM)

Optimize TCM calibration by allowing the inertial measurement unit (IMU) to measure roll angle and yaw rate before performing the TCM calibration.

1.
   PC8663-UN-29APR15

   Menu Button

   Select the Menu button.

---




2.

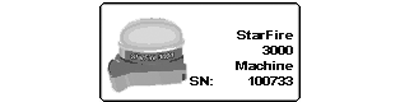

   PC13006-UN-05NOV14

   StarFire™ Button

   Select the StarFire™ button.

---




3.

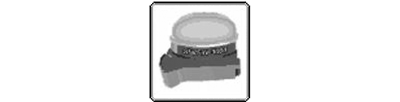

   PC21154-UN-11MAY15

   StarFire™ Softkey

   Select the StarFire™ softkey.

---




4.

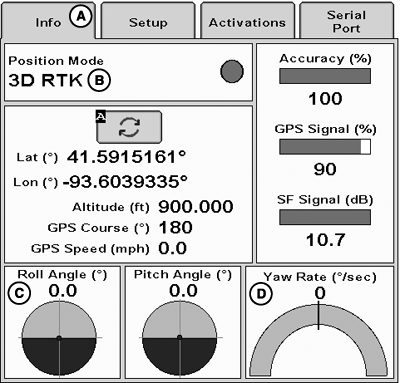

   PC24061-UN-06APR17

   A - Info Tab

   B - Position Mode

   C - Roll Angle

   D - Yaw Rate

   Select the Info tab (A).

---




5. Verify 3D Position Mode (B) has established SF1 signal or better.

6.

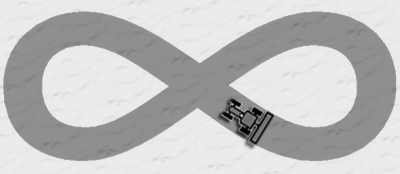

   PC21419-UN-30JUL15

   TCM Optimization Drive Pattern

   Drive machine in the TCM optimization drive pattern two times to allow the IMU to initialize.

---




7. Complete the TCM calibration.

   (Reference the Calibrate Terrain Compensation Module [TCM] for more information.)
