AB Curve Radial Shift

Shift an AB curve track left or right by generating a new guidance line with equal track spacing throughout the AB curve.

1.
   PC21926CC-19-15DEC15

   Shift Track Settings Tab


   PC21928CC-19-15DEC15

   Radial Shift Checkbox

   Select Shift Track Settings tab.

---




2. Select Radial Shift checkbox.

3.
   PC21927CC-19-15DEC15

   View Tab

   Select View tab.

---




4.
   PC21929-UN-11DEC15

   Shift Buttons

   A - Shift Button

   To adjust AB curve, select right or left shift button (A).

---




5.
   PC21930CC-19-15DEC15

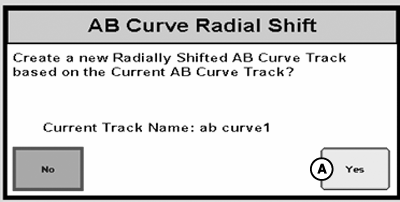

   AB Curve Radial Shift Popup Box 1


   PC21933CC-19-15DEC15

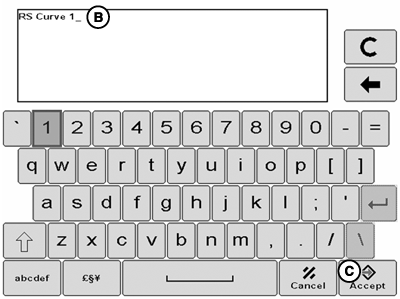

   New Track Name

   A - Yes Button

   B - New Track Name

   C - Accept Button

   To confirm the current track name, select Yes (A).

---




6. Enter new track name (B).

7. Select Accept (C).

8.
   PC21931CC-19-15DEC15

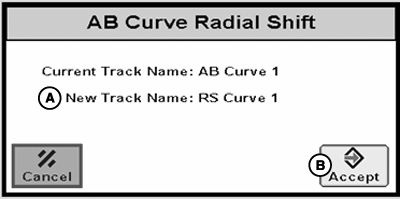

   AB Curve Radial Shift Popup Box 2

   A - New Track Name

   B - Accept Button

   Review New Track Name (A), and select Accept (B).

---




9.
   PC21932CC-19-15DEC15

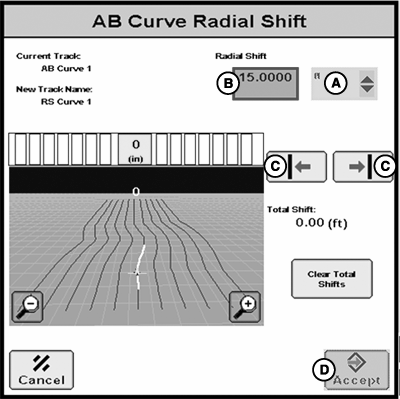

   AB Curve Radial Shift

   A - Measurement Drop-Down Menu

   B - Radial Shift Input Box

   C - Shift Button

   D - Accept Button

   Select measurement (A).

---




10. Enter Radial Shift size (B).

11. Select the right or left shift button (C) to select direction. New tracks are generated.

12. Select Accept (D).
